Matsuda (Thailand) is a trusted manufacturer and supplier of high-quality pins, along with comprehensive pin assembly services powered
by fully automated machines developed in-house. Designed with precision engineering, our systems integrate multiple production processes into a
single machine to meet specific customer requirements.
This advanced assembly system delivers high efficiency, reduces labor requirements, and saves space. Our pin assembly machine represents a
cost-effective, high-performance technology for modern manufacturing. As a result, we can consistently deliver high-quality products to our customers.
5 KEY ADVANTAGES:
01
MATERIAL COST DOWN
Achieve 99%+ material yield.
02
INITIAL COST DOWN
Our die mold is small and short L/T, then fee is same level as Jig
03
NO POST-PLATING FEE
Use pre-plated material to eliminate post-plating cost.
04
TRANSPORTATION COST DOWN
Compact cut-pin shapes help reduce transportation cost.
05
BOOSTS AUTOMATION
Supports automation and helps save labor and space.
Our Technology
How We Process
Our cold-forming process applies pressure to wire material using precision molds
Generating virtually zero scrap or waste material.
01

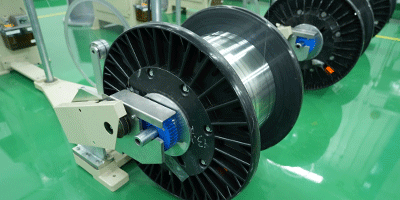

Wire Material Feeding
First, the metal wire supplied in coil form. The wire is fed into the machine through a precision gripper drive system, which ensures accurate positioning and stable movement.
02

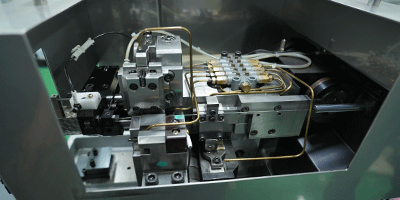

Cold Deformation Processing
Then, the wire is shaped using high-pressure molds. This cold forming method enhances material strength while maintaining tight dimensional tolerances.
03

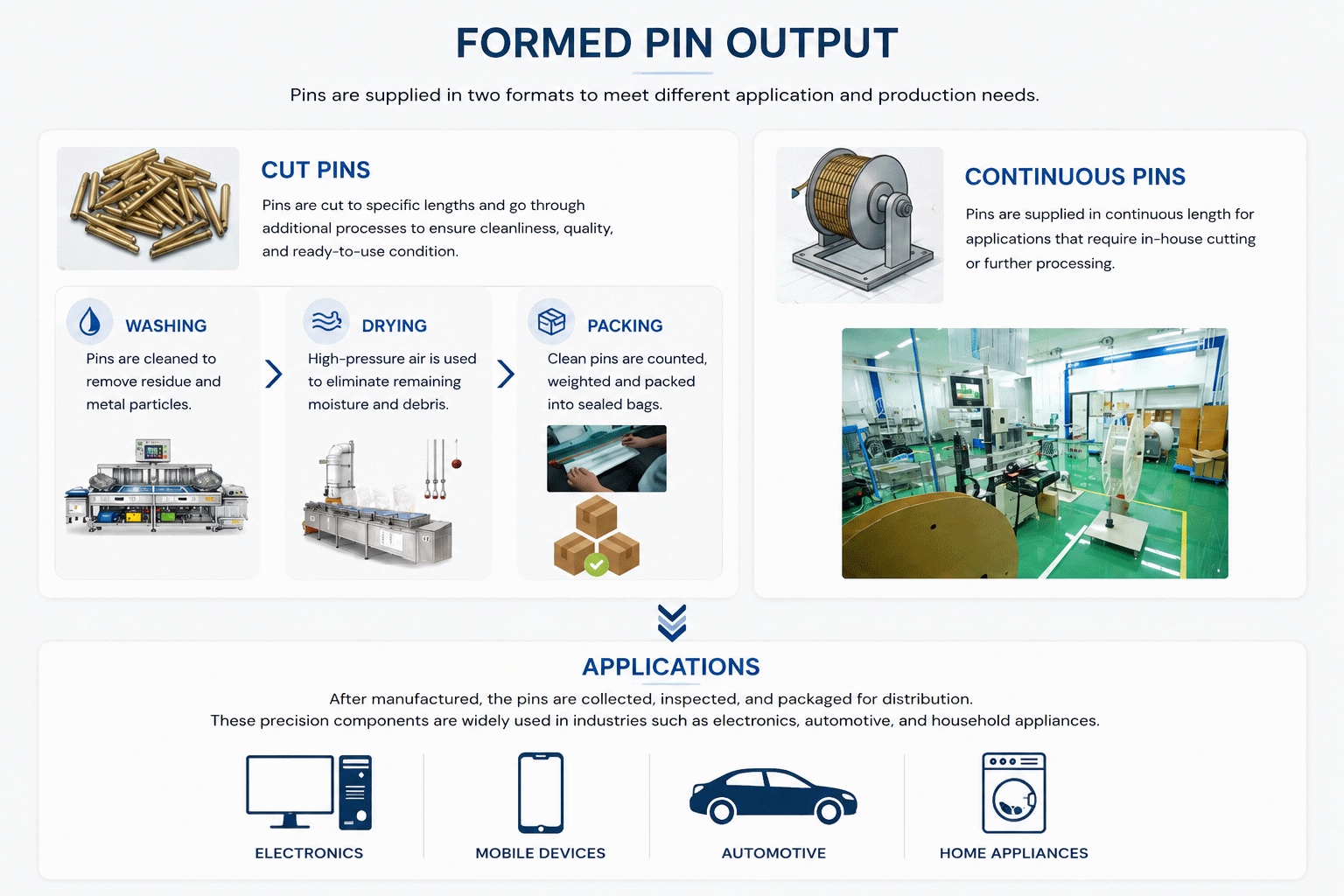

Output & Singulation
Finally, finished parts are then washing and drying processes to remove any residues.
Pin Process
Additional Option: Pin Assembly
Our company not only supplies packaged pins, but also supports the assembly of pins into housings using machines designed and developed in-house.
This enables stable quality, improved efficiency, and flexible solutions tailored to customer requirements.
This enables stable quality, improved efficiency, and flexible solutions tailored to customer requirements.
In-House Designed Machines
Stable Quality & Efficiency
Flexible Customer Solutions

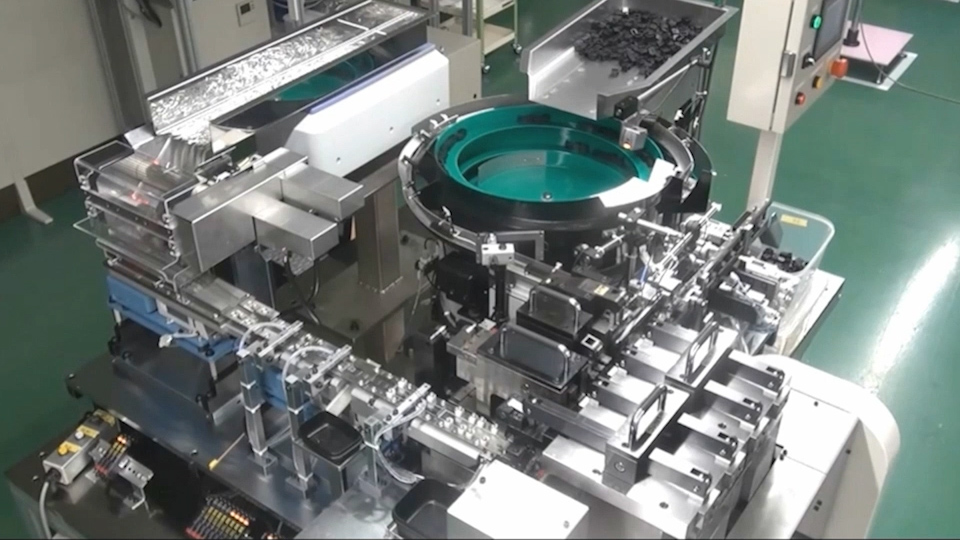

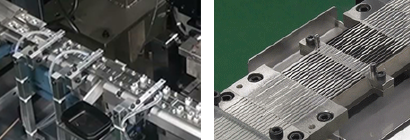

Automated Pin & Housing Assembly System
Pin-to-Connector Assembly Process
Our automated assembly system integrates pin feeding, housing feeding, insertion, rib processing, notch processing, and final assembly into a streamlined production flow.
Pin Feeding Process

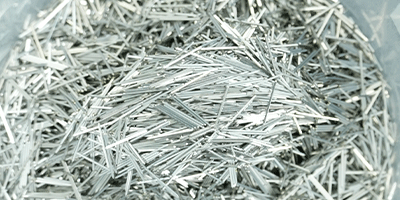

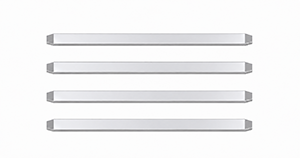

Step 1 Put Cut Pins into Hopper
Cut pins are placed into the machine hopper. The machine feeds the pins onto the line.

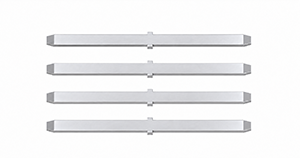

Step 2 Line Up Pins Automatically
Pins are automatically aligned and fed into the machine. Pins that do not meet standards are rejected.
Housing Feeding Process
Step 1 Put Housings into Hopper
Connector housings are placed into the machine hopper. The machine feeds the housings onto the line.
Step 2 Supply Housings Automatically
Connector housings are automatically supplied to the assembly line by the bowl feeder system.
Process Integration

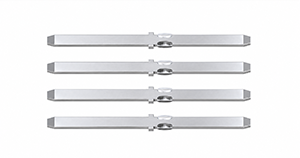

Step 3 Pin Insertion & Rib Processing
Pins and housings are precisely positioned and assembled automatically. Rib processing is performed to secure the assembled structure.

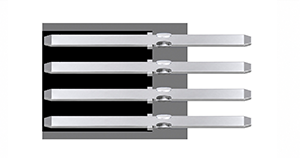

Step 4 Notch Processing
Notch processing is performed to achieve the required shape and improve assembly stability.
Step 5 Final Assembly
The completed pin assembly is fully integrated into the connector, reducing manual work and improving production efficiency.
Pin Assembly Process Overview
 Pins Automatic Feed |
Insert Pin into the Housing and Rib Processing |
Notch Processing |
Assembly |

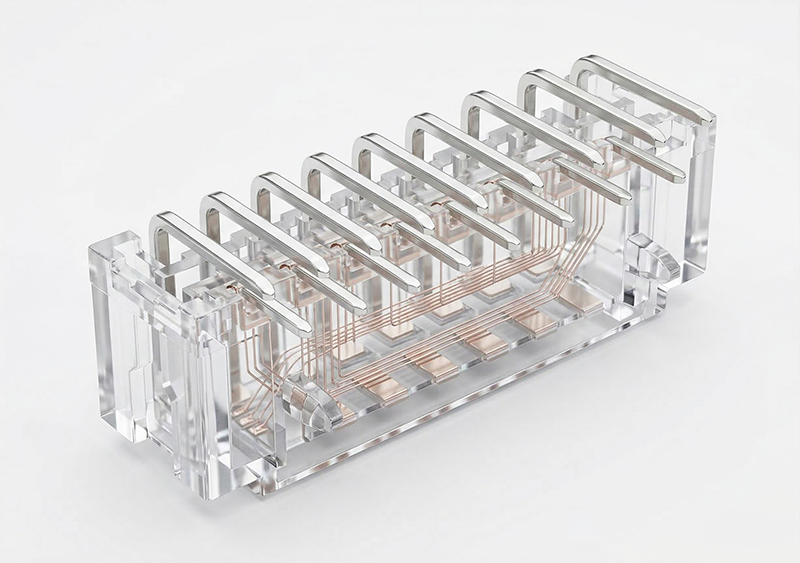

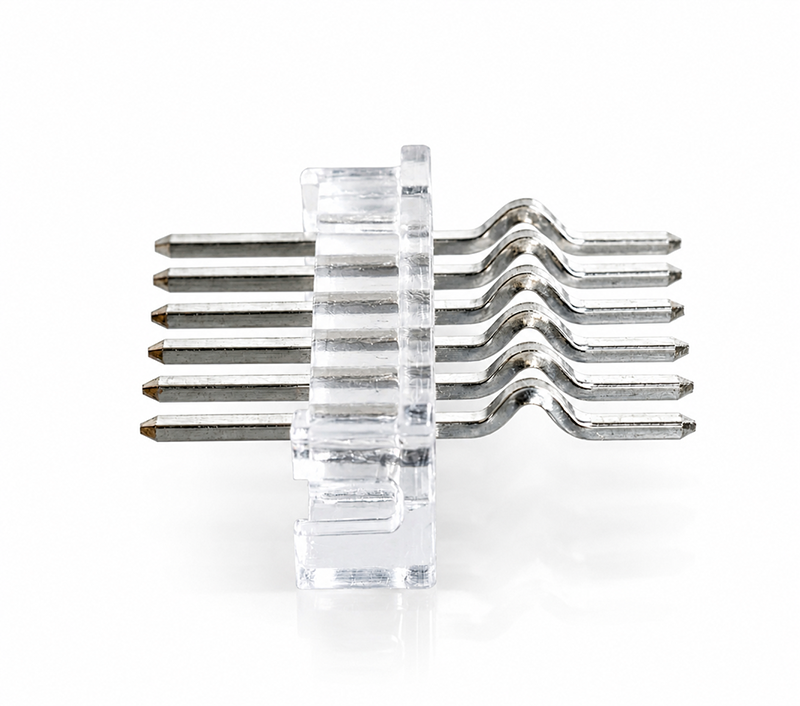

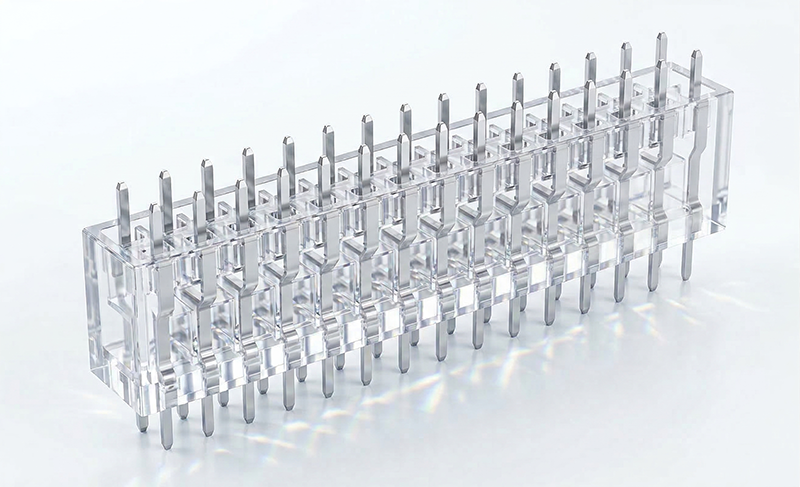

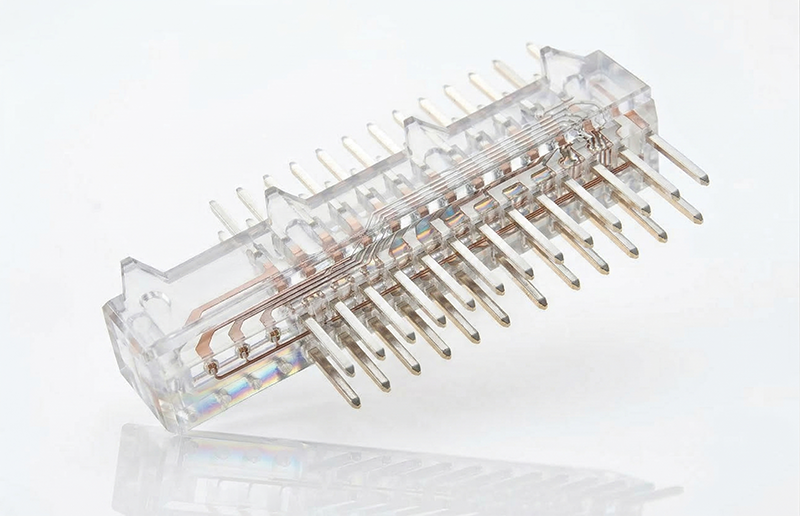

Pin Assembly Product
Contact Us
Precision Formed Pins & Connector Solutions
Precision formed pins, connector components, and automated assembly solutions for industrial applications.
Contact us for product inquiries and technical support.
